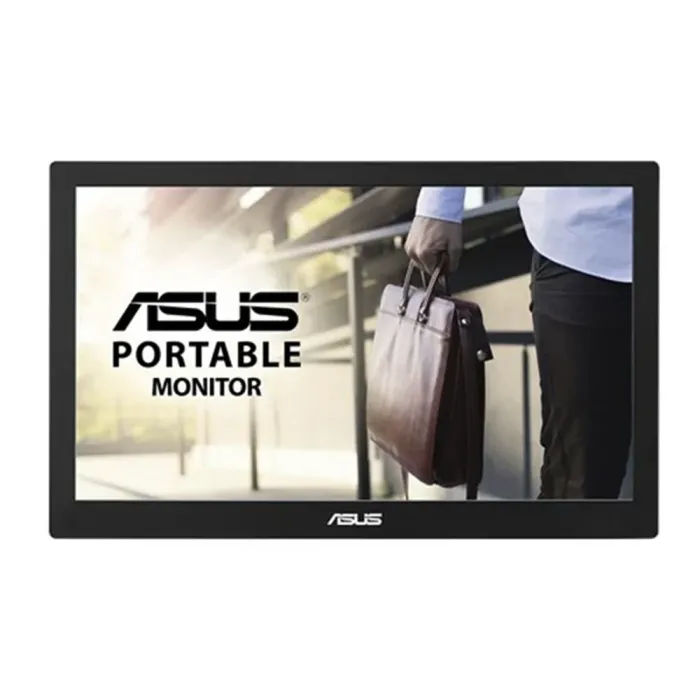

The 15.6" MB169B+ portable USB-powered monitor needs just one USB cable for both its video signal and power to deliver up to a Full HD resolution.
Thanks to the higher bandwidth of USB 3.0, experience fast, fluid images from your connected device that makes having an on-the-go multi-display setup a reality. What’s more, the MB169B+ is backwards compatible with a notebook or desktop PC USB 2.0 port
With a slim 8.5mm (0.3") profile and tipping the scales at just 800 g (1.76 lb), the MB169B+ is the world’s slimmest and lightest companion display, ideal for a simple on-the-go dual-monitor setup and mobile presentations.
A durable metallic finish with a fine pattern of concentric circles makes the MB169B+ the perfect complement to your notebook. And for added durability, it comes with a protective carrying case that doubles as an adjustable stand for tabletop use.
Increased productivity with Asus EzLink technology
The MB169B+ features ASUS EzLink technology that offloads graphics processing from the PC to dedicated hardware in the monitor.
As a result, a PC can drive up to five MB169B+ monitors at the same time, regardless of its own graphics capability — it just needs sufficient USB ports.
EzLink also automatically restores application window positions as a MB169B+ monitor is connected and disconnected, and automatically rotates the image between landscape and portrait modes, as required.
Panel Size (inch) : 15.6 Aspect Ratio : 16:9 Display Viewing Area (H x V) : 344.23 x 193.53 mm Display Surface : Non-Glare Backlight Type : LED Panel Type : IPS Viewing Angle (CR≧10, H/V) : 160°/ 160° Pixel Pitch : 0.179mm Resolution : 1920x1080 Brightness (Typ.) : 200cd/㎡ Contrast Ratio (Typ.) : 600:1 Display Colors : 260K Response Time : 25ms(Tr+Tf) Refresh Rate (Max) : 60Hz Contrast Ratio (Typ.) : 700:1 Response Time : 16ms(Tr+Tf)
Video Feature
HDCP : Yes DisplayWidget : Yes
Audio Feature
Speaker : No
I/O Ports
USB 3.2 (Signal) : x 1
Power Consumption
Power Consumption : <7.5W Power Saving Mode : 0W Power Off Mode : 0W (hard switch) Voltage : 100-240V, 50/60Hz Power Saving Mode : <0W Power Off Mode : 0W
Mechanical Design
Tilt : Yes (with supportive case) Height Adjustment : No
Dimensions (Esti.)
Phys. Dimension (W x H x D) : 37.90 x 23.60 x 0.85 cm (14.92" x 9.29" x 0.33") Box Dimension (W x H x D) : 43.50 x 29.70 x 5.70 cm (17.13" x 11.69" x 2.24") Phys. Dimension without Stand (W x H x D) : 37.90 x 23.60 x 0.85 cm (14.92" x 9.29" x 0.33")
Accessories (vary by regions)
ASUS Smart Case Quick start guide USB 3.0 cable Warranty Card
Note
*To support brightness adjustment and auto rotation functions, for Win7 and Win8 & 8.1 users, please download and install EZLink; for Win10 users, please download and install DisplayWidget. (Both Ezlink and DisplayWidget are working under Windows OS only)
