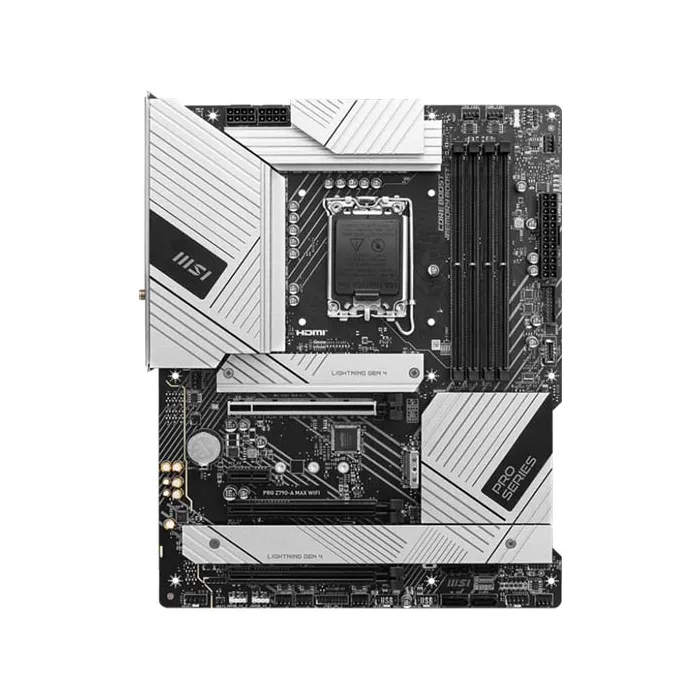

Msi Pro Z790-a Max Wifi Ddr5 Atx Motherboard - White

Specifications

• Chipset  : INTEL Z790

• CPU  : Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

                            LGA 1700

• Memory    :  4x DDR5 UDIMM, Maximum Memory Capacity 192GB

• Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

• Max. overclocking frequency:

        • 1DPC 1R Max speed up to 7800+ MHz

        • 1DPC 2R Max speed up to 6600+ MHz

        • 2DPC 1R Max speed up to 6400+ MHz

        • 2DPC 2R Max speed up to 5600+ MHz

        Supports Intel® XMP 3.0 OC

        Supports Dual-Controller Dual-Channel mode

        Supports non-ECC, un-buffered memory

• Onboard Graphics  : 1x HDMI™

        Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
        1x DisplayPort
        Support DP 1.4, maximum resolution of 8K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• Slot  : 3x PCI-E x16 slot

                        1x PCI-E x1 slot

                        PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

                        PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

                        PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

                        PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

• Storage  : 4x M.2

                        M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices

                        M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

                        M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

                        M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

                        6x SATA 6G

• RAID  : Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

                        Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

• USB  : 2x USB 2.0 (Rear)

                        4x USB 2.0 (Front)

                        2x USB 3.2 Gen1 Type A (Rear)

                        2x USB 3.2 Gen1 Type A (Front)

                        3x USB 3.2 Gen2 Type A (Rear)

                        1x USB 3.2 Gen2 Type C (Front)

                        1x USB 3.2 Gen2x2 Type C (Rear)

• LAN  : Intel® 2.5Gbps LAN

• WIRELESS LAN & BLUETOOTH  : Wi-Fi 7

          The Wireless module is pre-installed in the M.2 (Key-E) slot

          Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps

          Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

          Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.

** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.

• Audio : Realtek® ALC4080 Codec

                            7.1-Channel USB High Performance Audio

                            Supports S/PDIF output

• Internal IO  : 1x Power Connector(ATX_PWR)

                                    2x Power Connector(CPU_PWR)

                                    1x CPU Fan

                                    1x Pump Fan

                                    6x System Fan

                                    2x Front Panel (JFP)

                                    1x Chassis Intrusion (JCI)

                                    1x Front Audio (JAUD)

                                    1x TBT connector (JTBT, supports RTD3)

                                    1x Tuning Controller connector(JDASH)

                                    3x Addressable V2 RGB LED connector (JARGB_V2)

                                    1x RGB LED connector(JRGB)

                                    1x TPM pin header(Support TPM 2.0)

                                    4x USB 2.0 ports

                                    2x USB 3.2 Gen1 Type A ports

                                    1x USB 3.2 Gen2 Type C ports

                                    1x USB4 card connector (JTBT_U4_1, supports RTD3)

• LED FEATURE  : 4x EZ Debug LED

• BACK PANEL PORTS

                                    DisplayPort

                                    USB 2.0

                                    2.5G LAN

                                    Wi-Fi / Bluetooth

                                    Audio Connectors

                                    HDMI™

                                    Flash BIOS Button

                                    USB 3.2 Gen 1 5Gbps (Type-A)

                                    USB 3.2 Gen 2 10Gbps (Type-A)

                                    USB 3.2 Gen 2x2 20Gbps (Type-C)

                                    S/PDIF-OUT

• OPERATING SYSTEM : Support for Windows® 11 64-bit

• PCB Info : ATX

                                243.84mmx304.8mm
