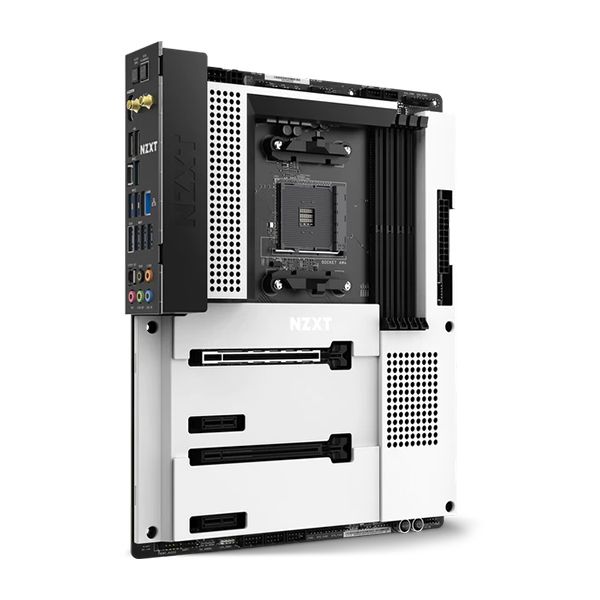

NZXT N7 B550 AM4 ATX Motherboard - White

NZXT N7 B550 AM4 WIFI ATX Motherboard - White

This motherboard enables a visually seamless backdrop for any build with all the features of the reliable AMD B550 chipset.

Specifications

CPU

• AMD Socket AM4 Ryzen™ Processors (3000, 4000, and 5000 Series Processors) : Supported

• AMD Ryzen™ 5 3400G and Ryzen™ 3200G : Not Supported

Chipset

• AMD® : B550

Memory

• DIMM Slots : 4

• Max Memory Support : 128GB

• Memory Architecture : Dual-Channel

• OC Frequency (Vermeer CPUs) : 4666+ MHz

• OC Frequency (Matisse CPUs) : 4666+ MHz

• OC Frequency (Renoir APUs) : 4733+ MHz

• Base Frequency : 3200/ 2933/ 2667/ 2400/ 2133

• Type : ECC & non-ECC, un-buffered memory

• XMP Support : Supported

• Integrated Graphics : AMD Radeon™ Vega Series Graphics in Ryzen Series APU

HDMI

• HDMI Max Resolution : 4096x2160@60Hz
• Max Shared Memory : 16GB with 32GB installed
• Microsoft PlayReady® : Supported
• Multi-GPU Support
• AMD 2-Way CrossFireX™ Technology : Supported

Expansion Slots

• PCIe x16 (x16 mode) : 1 (Vermeer & Matisse - PCIe 4.0, Renoir - PCIe 3.0)

• PCIe x16 (x4 mode) :1

• PCIe 3.0 x1 : 2

Storage (Chipset)

• M.2 Type 2242/2260/2280 (x4 mode) : 1 (Vermeer & Matisse - PCIe 4.0, Renoir - PCIe 3.0)

• M.2 Type 2242/2260/2280 (PCIe 3.0 x2 & SATA mode) : 1

• SATA 6Gb/s : 6* (M2_2 and SATA3_5_6 share lanes)

• RAID 0/1/5/10 Support : Supported

LAN

• Realtek® : RTL8125BG 2.5G

Wireless

• Intel® Dual-Band Wireless : AX210 Wi-Fi 6E

• Protocol : 802.11 a/b/g/n/ac/ax

• Frequency Bands : 2.4 / 5 / 6GHz

• MU-MIMO Support : Supported

• Bluetooth : V5.2

Audio

• Realtek® : ALC1220 Codec

• Channels : 8-Channel High Definition Audio

• Playback : 32-bit / 192kHz DAC

• Capacitors : Nichicon Fine Gold Series

Rear I/O

• USB 3.2 Gen 2 (Type-C) : 1

• USB 3.2 Gen 2 (Type-A) : 3

• USB 3.2 Gen 1 (Type-A) : 4

• USB 2.0 : 2

• HDMI™ 2.1 : 1

• Wireless Antenna : 2 (2T2R)

• LAN (RJ45) Port : 1

• 5.1-Channel Audio Jacks : 1

• Optical S/PDIF : 1

• BIOS Flashback Button : 1

• Clear CMOS Button : 1

Internal I/O

• M.2 (M Key), Type 2242/2260/2280 : 1 (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x2 & SATA mode)

• M.2 (E Key) (For wireless cards) : 1

• SATA 6Gbps Ports : 6

• USB 3.2 Gen 2 Header (Type-C) : 1

• USB 3.2 Gen 1 Header : 1 (Up to 2 ports)

• USB 2.0 Header : 3 (Up to 6 ports)

• Front Panel Audio : 1

• CPU_FAN Connector : 1 (Up to 24W)

• AIO_PUMP Connector : 1 (Up to 24W)

• SYS_FAN Connector : 5 (Up to 24W)

• NZXT RGB LED Header : 2

• 5V ARGB Header : 1

• 12V RGB Header : 1

• 24-pin EATX Power : 1

• 8-pin ATX 12V Power : 1

• 4-pin ATX 12V Power : 1

• Power Button : 1

• Reset Button : 1

• POST LEDs : 4

General

• Operating System  : Windows® 10 64-bit

• Form Factor : ATX

• Model Number : N7-B55XT-W1
