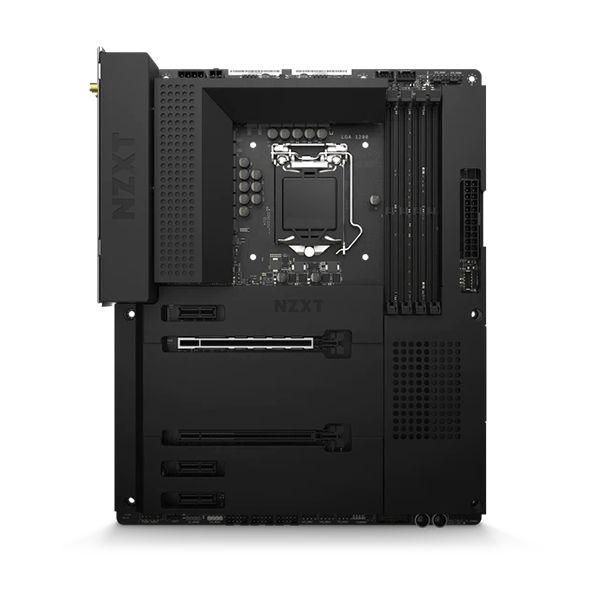

NZXT N7 Z590 Wi-Fi ATX Motherboard - BLACK

NZXT N7 Z590 Wi-Fi ATX Motherboard - BLACK

This motherboard enables a visually seamless backdrop for any build with all the features of the new Intel Z590 chipset.

Specifications

CPU

• Intel® Socket LGA1200 for 10th and 11th Generation Processors

• Intel® Core™ Processors. Please refer to CPU support list.

• Turbo Boost Max 3.0 Technology

• Supported

Chipset

• Intel®  Z590

Memory

• DIMM Slots : 4

• Max Memory Support : 128GB

• Memory Architecture : Dual-Channel

• OC Frequency (11th Gen CPUs) : 4600+ MHz

• OC Frequency (10th Gen CPUs) : 4400+ MHz

• Base Frequency (11th Gen CPUs) : 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz

• Base Frequency (10th Gen CPUs) : 2933 / 2800 / 2666 / 2400 / 2133 MHz

• Type : Non-ECC, Un-buffered Memory

• Intel® XMP 2.0 Support : Supported

• Integrated Graphics : Intel® Xe Graphics (11th Gen CPUs) / UHD (10th Gen CPUs), HDMI 2.0 / HDMI 1.4b

• HDMI Max Resolution : 4096x2160@60Hz

Multi-GPU Support

• AMD 2-Way CrossFireX™ Technology : Supported

Expansion Slots

• PCIe x16 (x16 mode) : 1 (11th Gen CPUs - PCIe 4.0, 10th Gen CPUs - PCIe 3.0)

• PCIe x16 (x4 mode) : 1

• PCIe 3.0 x1 : 3

Storage (Chipset)

• M.2 Type 2242/2260/2280 (PCIe x4 mode) : 1 (11th Gen CPUs - PCIe 4.0, 10th Gen CPUs - PCIe 3.0)

• M.2 Type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode) : 1

• SATA 6Gb/s : 4

• RAID 0/1/5/10 Support : Supported

• Intel® Smart Response Technology : Supported

• Intel® Rapid Storage Technology : Supported

• Intel® Optane Memory : Supported

LAN

• Realtek® : RTL8125BG 2.5G

Wireless

• Intel® Dual-Band Wireless : AX210 Wi-Fi 6E

• Protocol : 802.11 a/b/g/n/ac/ax

• Frequency Bands : 2.4 / 5 / 6 GHz

• MU-MIMO Support : Supported

• Bluetooth : V5.2

Audio

• Realtek® : ALC1220 Codec

• Channels : 8-Channel High Definition Audio

• Playback : 32-bit / 192kHz DAC

• Capacitors : Nichicon Fine Gold Series

Rear I/O

• USB 3.2 Gen 2x2 (Type-C) : 1

• USB 3.2 Gen 2 (Type-A) : 3

• USB 3.2 Gen 1 (Type-A) : 4

• USB 2.0 : 2

• HDMI™ 2.0 : 1

• Wireless Antenna : 2 (2T2R)

• LAN (RJ45) Port : 1

• 5.1-Channel Audio Jacks : 1

• Optical S/PDIF : 1

• Clear CMOS Button : 1

Internal I/O

• M.2 (M Key), Type 2242/2260/2280 : 1 (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x4 & SATA mode)

• M.2 (E Key) (For wireless cards) : 1

• SATA 6Gbps Ports : 4

• USB 3.2 Gen 2 Header (Type-C) : 1

• USB 3.2 Gen 1 Header : 2 (Up to 4 ports)

• USB 2.0 Header : 3 (Up to 6 ports)

• Front Panel Audio : 1

• CPU_FAN Connector : 1 (Up to 24W)

• AIO_PUMP Connector : 1 (Up to 24W)

• SYS_FAN Connector : 5 (Up to 24W)

• NZXT RGB LED Header : 2

• 5V ARGB Header : 1

• 12V RGB Header : 1

• 24-pin EATX Power : 1

• 8-pin ATX 12V Power : 1

• 4-pin ATX 12V Power : 1

• Power Button : 1

• Reset Button : 1

• POST LEDs : 4

General

• Operating System : Windows® 10 64-bit

• Form Factor : ATX
