main product photo

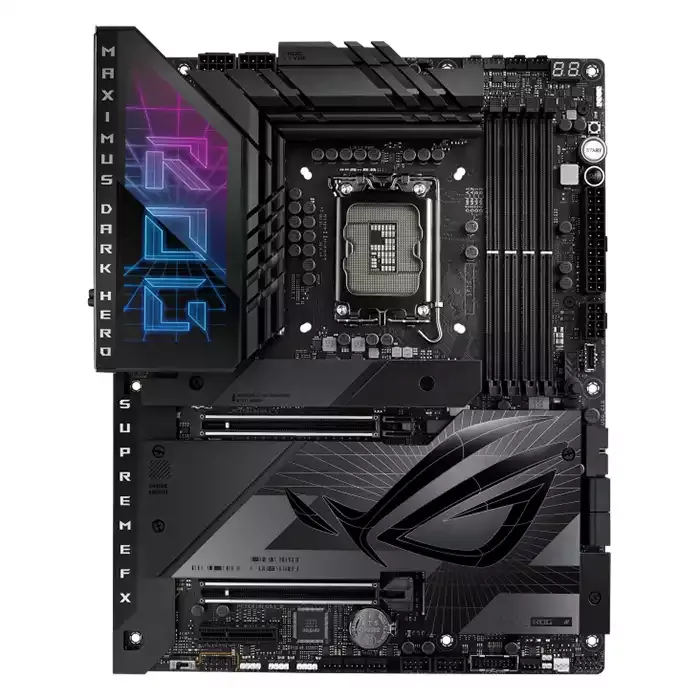

Asus Rog Maximus Z790 Dark Hero Atx Gaming Motherboard

KD259.900
Be the first to review this product
In stock
SKU
36545
Brand
ASUS
Add to Compare
Quick Overview

Intel LGA 1700 socket: Ready for Intel Core Next-Gen & 13th Gen processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors

Robust Power Solution: 20+1 teamed power solution rated for 90A per stage with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors.

Optimized VRM Thermals: Massive heatsinks integrated with the I/O cover, joined by an L-shaped heatpipe, and connected to the power stages with high-conductivity thermal pads.

Latest M.2 Support: Onboard PCIe 5.0 M.2 slot, and four PCIe 4.0 M.2 slots all with substantial cooling solutions

Abundant Connectivity: Dual Thunderbolt 4 USB Type-C ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, six additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots, HDMI 2.1

High-Performance Networking: On-board Intel Wi-Fi 7 (802.11be) and Intel 2.5 Gb Ethernet with ASUS LANGuard

Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance.

Immersive Audio: ROG SupremeFX ALC4082 codec with ESS ES9218 Quad DAC for up to 32-Bit/384 kHz playback

Unmatched Personalization: I/O cover with Polymo Lighting, three addressable Gen 2 headers and one RGB header, all configurable with ASUS-exclusive Aura Sync RGB lighting

DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, pre-mounted I/O shield, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack button, and Clear CMOS button.

Free Delivery A
  • Accept payments online
  • 14-day money-back guarantee for products, if the package is not opened, according to the laws of the Ministry of Commerce.
  • Free deliver all orders same day ( If the order placed before 8 pm )
  • 24/7 Customer Support
Free Delivery B
Free Delivery C
Free Delivery D
Related Products
Check items to add to the cart or

Asus ROG MAXIMUS Z790 DARK HERO ATX Gaming Motherboard
ROG MAXIMUS Z790 DARK HERO
Intel® Z790 LGA 1700 ATX motherboard with 20 + 1 power stages, DDR5, Wi-Fi 7 with ASUS WiFi Q-Antenna, five M.2 slots, PCIe® 5.0 NVMe® SSD slot onboard, PCIe 5.0 x16 SafeSlots with Q-Release, two Thunderbolt™ 4 ports, USB 20Gbps Type-C® front-panel connector with Quick Charge 4+ up to 60W, AI Overclocking, AI Cooling II, AI Networking, Two-way AI Noise Cancelation, and Aura Sync RGB lighting

More Information
Product NameAsus Rog Maximus Z790 Dark Hero Atx Gaming Motherboard
BrandASUS
Warranty1 Year Warranty

Specifications:

CPU Support

Intel® Core™ 14th & 13th Gen, Core™ 12th Gen, Pentium® Gold, Celeron® Processors (LGA1700)

Chipset

Intel® Z790 Chipset

Memory

4 x DIMM slots, max. 192GB DDR5, Dual-channel architecture, XMP, ASUS AEMP II

Graphics

HDMI port, 2 x Thunderbolt™ 4 ports (USB Type-C®)

Expansion Slots

2 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, PCIe bifurcation support

Storage

5 x M.2 slots, 4 x SATA 6Gb/s ports, RAID support

Ethernet

1 x Intel® 2.5Gb Ethernet, ASUS LANGuard

Wireless & Bluetooth

Intel® Wi-Fi 7, Bluetooth® v5.4, Wi-Fi 7 MLO support in Windows 11 2024 Platform

USB Ports

Rear: 2 x Thunderbolt™ 4, 6 x USB 10Gbps (Type-A + Type-C®), 4 x USB 5Gbps (Type-A) <br> Front: 1 x USB 20Gbps (Type-C®), 2 x USB 5Gbps headers, 2 x USB 2.0 headers

Audio

ROG SupremeFX 7.1 Surround Sound, ALC4082, ESS® ES9218 QUAD DAC, Gold-plated jacks, Optical S/PDIF out

I/O Ports

HDMI, Thunderbolt™ 4, USB, Wi-Fi Module, 2.5Gb Ethernet, Audio jacks, Optical S/PDIF, BIOS FlashBack™, Clear CMOS

Internal Connectors

M.2 slots, SATA ports, USB headers, Fan headers, Power connectors, Addressable Gen 2 headers, AURA RGB header, FlexKey button, Thermal sensor header, PCIe mode switch

Special Features

Extreme OC Kit, Extreme Engine Digi+, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, AURA Sync, Front Panel USB 20G with Quick Charge 4+ Support

Software Features

ROG and ASUS Exclusive Software, UEFI BIOS, AI Overclocking Guide, USB Wattage Watcher

Accessories

Various cables, Cooling Kit, Q-Latch and Rubber Packages, WiFi Q-Antenna, ASUS VIP card, Installation Media, Documentation

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

ATX, 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
